Outdoor Spectrum Analyzers
SPECTRAN V6 MIL
The SPECTRAN® V6 MIL is a military-standard outdoor real-time spectrum analyzer predestined for processing and storing I/Q data. It offers all the benefits of an extremely rugged laptop combined with our SPECTRAN® V6 real-time spectrum analyzer. Designed and built for the most extreme conditions and independently tested and certified to MIL-STD-810G and IP65.

Best suited for counterintelligence, e.g. for detecting bugs. The V6 MIL provides up to 245 MHz (I/Q) of real-time bandwidth in a frequency range from 10 MHz to 6 GHz (opt. 8 GHz). Perfect for frequency monitoring and for detecting, analyzing and recording unknown and illegal signal transmissions over a wide frequency range. In addition, the device can be used as a powerful laptop.
- Frequency range from 10 MHz to 6 GHz (opt. 8GHz)
- Up to 245 MHz (I/Q) real-time bandwidth
- Perfect for counter-surveillance, f.e. detection of bugs
- POI: 97 ns (FFT-based), 10ns (I/Q-based)
- MIL-STD-810G and IP65 certified
- 1 TB SSD RAM / up to 8 TB SSD recording memory
- Automatic triggers programmable
- Patented polyphase filter technology
- Simultaneous surveillance of multiple bands (3G, 4G, 5G, WLAN...)
- Real-time and sweep spectrum analyzer in one
- Scans 6 GHz in less than 5 ms
- RTSA Suite PRO software pre-installed
Software
With the RTSA-Suite PRO there are many ways to display and analyse any received or recorded data. The software is being updated and expanded with new features almost daily.

Highlights
• Real-time bandwidth of up to 245 MHz (I/Q).
• Certified to MIL-STD-810G and IP65 standards
• Operates in the temperature range of – 20°C to + 60°C
• 1 TB SSD system hard disk
• up to 8 TB SSD recording memory (depends on MIL version)
• Automatic trigger adjustable
• Simultaneous monitoring of frequency bands (3G, 4G, 5G, WLAN, etc.)
• Real-time and sweep spectrum analyzer in one
• Sweept 6 GHz in less than 5 ms (1 THz/s)
Spectrum Monitoring
The SPECTRAN® V6 MIL is specifically designed for wideband spectrum analysis. The portable spectrum analyzer in combination with the RTSA Suite software allows to monitor a wide frequency range in real-time or to sweep the complete band from 10 MHz to 6 GHz (opt. 8 GHz) in shortest time with the super fast sweep. Even the shortest signals are reliably detected and localized with a suitable directional antenna. In this way, interferers or eavesdropping and tracking devices can be found and switched off with pinpoint accuracy.
Counter-surveillance
Due to its extremely low POI, the SPECTRAN® V6 MIL is ideally suited for detecting hidden microphones, bugs or other surveillance devices. This enables security organizations to reliably detect and eliminate them. It is also possible to configure an alarm that is triggered when conspicuous signals appear, for example, in the frequency ranges of 2G, 3G, 4G, 5G, WLAN 2.4 or WLAN 5. It is also possible to continue recording signals inconspicuously with the display closed and to emit a warning tone via the audio output (or the loudspeakers) if one of the automatic triggers has been triggered. Long-term storage of I/Q raw data is also easily possible with the optional hard disk expansion. In addition, there is the option of audio demodulation if radio communications are to be monitored.
Robust
The SPECTRAN® V6 MIL has been independently tested and certified to MIL-STD-810G and IP65. The high quality alloy housing is specifically designed to make the analyzer shock, vibration and drop resistant. In addition to this, the system is sealed to provide complete protection against dust and moisture. This allows the spectrum analyzer to be used in the most difficult operations, such as in the desert, in the jungle, or even in the polar region. The SPECTRAN® V6 MIL is fully usable at temperatures from -20°C to +60°C.
Laptop
The V6 MIL is not only a powerful spectrum analyzer, but also a well-equipped laptop. The system can be used as a normal Windows computer. What this means for you is that there is no need for an additional laptop/notebook/tablet, etc., when other computer-related tasks need to be done on site.
Laptop Highlights
• Powerful Intel® Xeon® processor E-2176
• 64 GB RAM
• Dedicated NVIDIA GTX 1050 graphics card with 4 GB
• 1 TB SSD system hard drive / up to 8 TB SSD recording storage (depends on MIL version)
• Glare-free 15.6″ widescreen display (Full HD: 1920 x 1080) with LED backlighting
• Removable hard drives and batteries
Options / Extensions
• 245MHz* (I/Q) real-time bandwidth
• Frequency extension to 8GHz
• 5ppb (0.005ppm) OCXO time base
• Internal preamplifier
• GPS (incl. external antenna)
• Optional SSD hard drive expansion
• Wide selection of Aaronia antennas
Spectrum Analysis Software RTSA Suite PRO.
The V6 MIL comes with pre-installed RTSA-Suite PRO software. This is one of the most powerful and versatile spectrum analysis software solutions on the market. The RTSA-Suite PRO allows signals to be displayed and analyzed in real-time in a wide variety of ways. The software is constantly being developed and new features added. There are daily updates in the download section.
Application examples
• Technical Surveillance Countermeasures (TSCM)
• Government sweep teams for internal and external security
• Security surveys to detect and prevent eavesdropping
• RF environment monitoring and interference management
• Monitoring all incoming and outgoing signals from military bases
• Radio monitoring and enforcement
• Maintenance, installation and repair both in the factory and on-site
• VIP monitoring
• In-conference monitoring
• EMC / EMI testing
• Detection of weak signals masked by stronger signals
• Detection of rare, short duration events
• and much more…
Made in Germany
Like all devices of the SPECTRAN® series, the SPECTRAN® V6 MIL spectrum analyzer is completely developed and manufactured in Germany. Thus we can offer the highest standard of quality.
Documents:
SPECTRAN V6 MIL Datasheet
Photos:
Scope of Delivery:
SPECTRAN V6 MIL, Spectrum Analysis Software “RTSA-Suite PRO” (pre-installed)

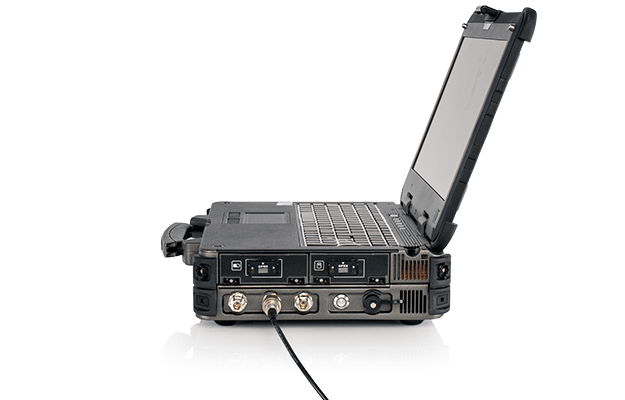

SPECTRAN V6 XFR PRO
The SPECTRAN V6 XFR PRO is the world’s first and only military standard real-time spectrum analyzer. The XFR PRO offers all the advantages of a rugged Laptop and combines these with a powerful real-time spectrum analyzer. Developed and built for extreme conditions and independently MIL-STD-810G and IP65 tested.

The V6 XFR offers up to 245MHz real-time bandwidth in the frequency range from 10MHz to 6GHz. The device can be also used as a powerful laptop. Perfectly suited for frequency-monitoring and the detection of unknown or illegal signal transmissions.
Highlights
• Frequency range from10MHz to 6GHz (opt. 8GHz)
• Real-time bandwidth of up to 245MHz (I/Q)
• MIL-STD-810G and IP65 certified
• Up to 8 TB SSD (Hard Disk / Storage)
• Automatic Triggers programmable
• Simultaneous surveillance of multiple bands (3G, 4G, 5G, WLAN…)
• Real-time and sweep spectrum analyzer in one
• Including software with daily updates
• 1THz Sweep in 5ms
• Built-in GPS
• HF Connector N-female
Counter-Surveillance
The SPECTRAN V6 XFR PRO was specifically developed for counter-surveillance. The spectrum analyzer, in combination with the RTSA-Suite PRO Software, makes it possible to monitor multiple bands in real-time. It can also trigger an alarm when any suspicious activity occurs – for example in the bands 2G, 3G, 4G, 5G, LTE, WLAN 2,4 or 5,8. Alternatively, the XFR PRO can use the super quick sweep to scan the complete band from 10MHz to 6GHz. This way any interferers, tracking or listening devices can be found and dealt with quickly (with the help of a directional antenna).
It is possible to use the V6 XFR in a stealthier manner – with the display closed – and still record signals and get a warning tone through the audio output or the integrated speakers, if any of the automatic triggers are activated. It is also possible to demodulate audio signal transmissions, if you want to monitor wireless communication.
Rugged
This spectrum analyzer was independently MIL-STD-810G and IP65 tested. The casing is made from a high-quality magnesium alloy and was specifically designed and developed to protect the analyzer against drops, shocks, spills, vibration and more. The sealed design of the XFR additionally protects it against dust and moisture. This enables the spectrum analyzer to be used in the harshest, most difficult conditions – like jungles, deserts or a polar circle. The V6 XFR PRO can be used at temperatures from -20°C up to +60°C.
Laptop Highlights
• Powerful i7 Processor
• 8GB RAM
• nVidia Geforce GT 745M
• 500GB HDD (optional up to 8TB SSD)
• 15,6” Full-HD 1080p with Multi-Touch
• Removable hard-drive
• Fingerprint Sensor
Laptop
The V6 XFR PRO is not only a powerful spectrum analyzer, but also a high-performance laptop. The system can be used as a normal Windows-PC. This means that no additional laptop/notebook/tablet is required for computer-based work on-location.
Options / Accessories
• 245MHz Real-Time Bandwidth
• 5ppb (0,005ppm) OCXO Time-Base
• Fitting Preamplifiers, 8 different versions (up to 20GHz)
• Great selection of Aaronia antennas
• Optional second battery (hot-swap-system)
• DC-Car Adapter
• Backpack
Software
The SPECTRAN V6 can be used together with the new, free and included in the delivery RTSA-Suite PRO Software via USB 2.0. The RTSA is one of the most powerful and flexible spectrum analysis software-solutions on the market. The software gives you the ability to display and analyze signals in real-time in many different ways. It is under constant development, with many new features being added over time. Daily updates can be found in our download-section.
Made in Germany
Like all devices of the SPECTRAN series, the SPECTRAN V6 XFR PRO spectrum analyzer is developed and assembled in Germany, guaranteeing the highest quality standards.
- Frequency Range from 10MHz to 6GHz (opt. 8GHz)
- Up to 245MHz (I/Q) Real-Time Bandwidth
- Perfect for counter-surveillance, f.e. detection of bugs
- POI: 97 ns (FFT-based), 10ns (I/Q-based)
- MIL-STD-810G and IP65 certified
- Up to 8 TB SSD (Hard Disk / Storage)
- Automatic Triggers programmable
- Patented Polyphase Filter Technology
- Simultaneous surveillance of multiple bands (3G, 4G, 5G, WLAN...)
- Real-time and sweep spectrum analyzer in one
- Scans 6GHz in less than 5ms
- Incl. "RTSA-Suite PRO" Software
Software:
With the RTSA-Suite PRO there are many ways to display and analyse any received or recorded data. The software is being updated and expanded with new features almost daily.

Documents:
SPECTRAN V6 XFR PRO
Photos:
Scope of Delivery:
SPECTRAN V6 XFR PRO, OmniLOG 70600 antenna (700MHz – 6GHz), RTSA-Suite PRO software (on a USB drive), international charging cable with adapters.
Versions:
SPECTRAN V6 XFR PRO
Outdoor Boxes

Remote Real-Time Spectrum Analyzer for outdoor use (IP66)
9kHz – 6GHz | 40MHz RTBW
Receiver
Rx
Tx
Rx RTBW
Tx RTBW
DANL
IQ POI
Sweep
Network
Processor
RAM
SSD
Design
1
1 Rx
–
40 MHz
–
-165 dBm/Hz
40 ns
200 GHz/s
1 GbE
8 Core
32 GB / 64 GB
1 TB / 4 TB
Remote IP66

Remote Real-Time Spectrum Analyzer for outdoor use (IP66)
9kHz – 8GHz | 80MHz RTBW
Receiver
Rx
Tx
Rx RTBW
Tx RTBW
DANL
IQ POI
Sweep
Network
Processor
RAM
SSD
Design
2
1 Rx
1 Tx
80 MHz
40 MHz
-168 dBm/Hz
40 ns
350 GHz/s
1 GbE
8 Core
32 GB / 64 GB
1 TB / 8 TB
Remote IP66

Remote Real-Time Spectrum Analyzer for outdoor use (IP66)
10MHz – 8GHz | 245MHz RTBW
Receiver
Rx
Tx
Rx RTBW
Tx RTBW
DANL
IQ POI
Sweep
Network
Processor
RAM
SSD
Design
1
1 Rx / 2 Rx / 4 Rx
1 Tx
160/245 MHz
120/245 MHz
-170 dBm/Hz
15/10 ns
730/1100 GHz/s
2 x 10 GbE
16 Core
64 GB / 128 GB
1 TB / 30 TB
Remote IP66
